Cone crushers are designed to operate in some of the harshest conditions in the aggregates industry. Even with proper maintenance, certain components naturally experience more wear than others due to the constant crushing forces, vibration, and abrasive materials they encounter.
Understanding which cone crusher parts are most likely to fail, and why, can help plant operators plan maintenance, reduce unexpected downtime, and extend the life of their equipment.
- Mantle and Concave
The mantle and concave (also called the bowl liner) are the primary wear components inside a cone crusher. As rock is compressed between these two surfaces, they gradually wear away over time.
Several factors can accelerate wear, including:
- Highly abrasive feed material
- Improper crusher settings
- Poor feed distribution
- Operating beyond the recommended capacity
Running worn liners too long can reduce crushing efficiency, negatively impact product gradation, and place additional stress on other crusher components. Regular liner inspections and timely replacement help maintain consistent performance.
- Torch Ring
The torch ring helps protect critical areas of the crusher from material intrusion and excessive wear. While it is not a primary crushing component, it is exposed to constant vibration and abrasive dust.
Damage commonly occurs when:
- Worn liners allow excessive movement
- Material packs into areas where it shouldn’t
- Routine inspections are delayed
Replacing a damaged torch ring before it causes additional wear can help prevent more extensive repairs.

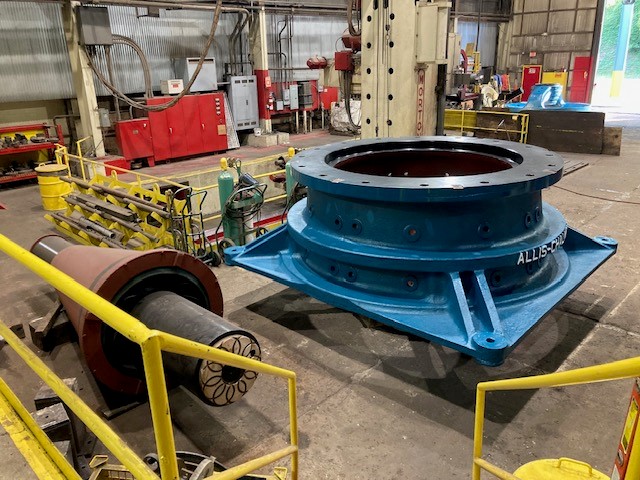

- Main Shaft
The main shaft supports the mantle and transfers crushing forces throughout the machine. Although it is built for heavy-duty operation, excessive stress can eventually lead to damage.
Common causes include:
- Tramp iron entering the crushing chamber
- Repeated overload conditions
- Poor lubrication
- Continued operation after other components have failed
A damaged main shaft often results in significant downtime, making preventive maintenance especially important.
- Bearings and Bushings
Cone crushers rely on precision bearings and bushings to maintain proper alignment while allowing components to move smoothly under heavy loads.
These parts are particularly vulnerable to:
- Lubrication problems
- Contaminated oil
- Excessive heat
- Misalignment
Many bearing failures begin with small lubrication issues that could have been detected during routine inspections.
- Seals
Dust is one of the biggest challenges for any crushing operation. Worn or damaged seals allow dust and debris to enter areas containing lubricating oil and precision components.
When seals fail, contamination can lead to accelerated wear throughout the machine.
Regular seal inspections are a simple but effective way to protect critical internal components.
- Hydraulic Components
Many modern cone crushers use hydraulic systems for tramp relief, clearing the crushing chamber, and adjusting crusher settings.
Hydraulic failures are often caused by:
- Dirty hydraulic oil
- Worn hoses
- Damaged cylinders
- Leaking fittings
- Poor preventive maintenance
Maintaining clean hydraulic fluid and addressing leaks early helps ensure reliable crusher operation.
How to Prevent Common Cone Crusher Failures
While wear is unavoidable, many premature failures can be prevented through a proactive maintenance program.
Best practices include:
- Perform scheduled inspections of wear parts and mechanical components.
- Monitor liner wear and replace liners before performance declines significantly.
- Keep lubrication and hydraulic systems clean and properly maintained.
- Ensure the crusher receives a consistent, evenly distributed feed.
- Address unusual noises, vibration, or temperature increases immediately.
- Replace worn components before they create additional damage elsewhere in the machine.
Small maintenance issues are typically far less expensive than emergency repairs and unplanned production losses.
